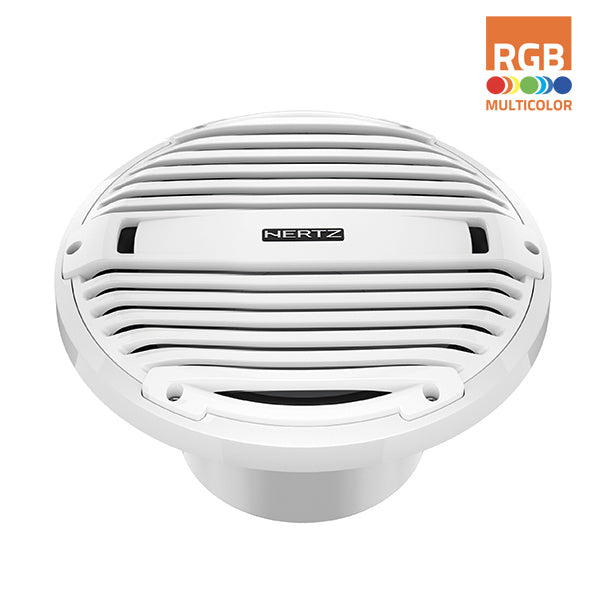

HERTZ Marine 10" 600W 4 Ohm Svc White Infinite Baffle Subwoofer (Hms 10 B4-Ld-W)

HERTZ Marine 10" 600W 4 Ohm Svc White Infinite Baffle Subwoofer (Hms 10 B4-Ld-W)

$449.99

HERTZ Marine 10" 600W 4 Ohm Svc White Infinite Baffle Subwoofer (Hms 10 B4-Ld-W)

$449.99
0 watching this item.

HERTZ Marine 10" 600W 4 Ohm Svc White Infinite Baffle Subwoofer (Hms 10 B4-Ld-W)

$449.99

SKU: HMS10B4W

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details
The HMS 10 B  long throw 10” marine subwoofer, also available in the black option HMS 10 B-C, is engineered for infinite baffle application. It relieves the main speakers from the hard work of reproducing the lowest frequency range, adding bass output and punch to maximize the overall system performance. The FEM optimized high-excursion mobile equipment of HMS 10 B with a 50 mm (2”) voice coil is driven by a massive magnetic group, to obtain a perfect control also at very high level SPL. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust ) HMS 10 B4-LD-W is nature-proof. The progressive design aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The gold-plated corrosion resistant brass connection terminals with silicone cap protect the leadwire junction point.

Size mm (in.) 250 (10)
Power Handling - Continuous W 300
Power Handling - Peak W 600
Impedance Ohm 4
Depth mm (in.) 116 (4.56)
Voice Coil Type single
No Filter Component SUBWOOFER
Voice Coil Ø 50 (2)
Magnet size D x d x h mm (in.) 140 x 60 x 30 (5.51 x 2.36 x 1.18)
Weight of one component kg (lb.) 5,1 (11.24)
Magnet High density flux ferrite
Cone Polypropylene with UV inhibitors
Xmech mm (in.) ±19 (0.75)
D mm 210
Xmax mm 13.5
Re Ohm 4.5
Fs Hz 41
Le mH 0.9
Vas I 37
Mms g 69
Cms mm/N 0.22
BL T*m 10.2
Qts 0.71
Qes 0.76
Qms 11
Spl dB 88

HMS 10 B4-LD-W
A 280 mm 11 in.
B 227 mm 8.93 in.
C 165 mm 6.5 in.
D 116 mm 4.56 in.
F 48 mm 1.88 in.
Frequency response
HMS 10 B4-LD-W
