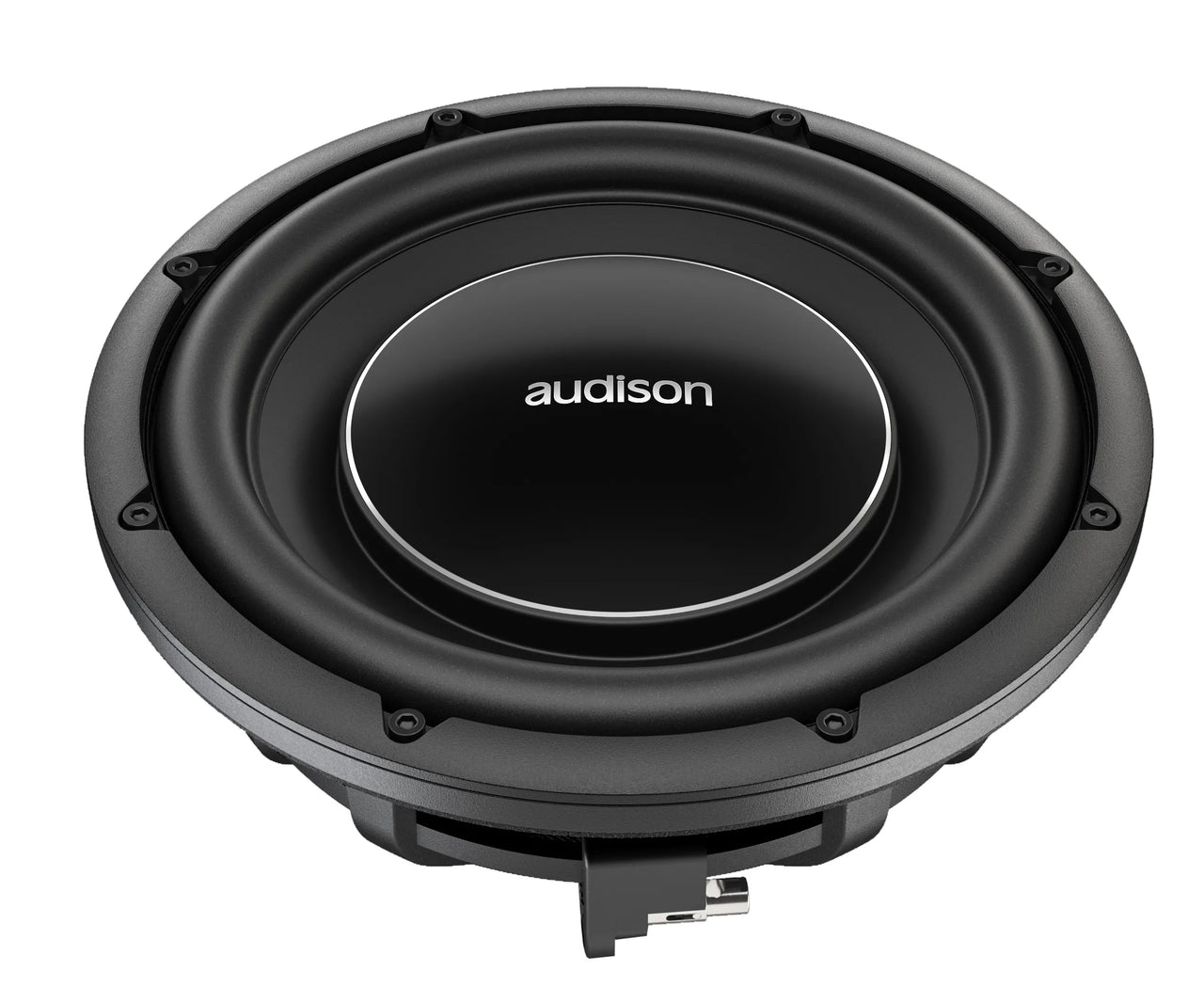

AUDISON Voce Ii - 10" 1100W 2 + 2 Ohm Subwoofer (Av 10 D2 Ii)

AUDISON Voce Ii - 10" 1100W 2 + 2 Ohm Subwoofer (Av 10 D2 Ii)

$849.99

AUDISON Voce Ii - 10" 1100W 2 + 2 Ohm Subwoofer (Av 10 D2 Ii)

$849.99
0 watching this item.

AUDISON Voce Ii - 10" 1100W 2 + 2 Ohm Subwoofer (Av 10 D2 Ii)

$849.99

SKU: AV10D2II

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details

Designed for tight spaces and dynamic performance, the AV 10 D2 II delivers powerful, articulate low frequencies with the precision and control that define the VOCE II line.

Its dual 2-ohm voice coil configuration provides greater flexibility for low-impedance system design, allowing optimal power transfer from high-performance amplifiers. The subwoofer features a 1.5-inch CCAW voice coil, FEM-optimized motor assembly and a die-cast aluminum basket with integrated cable-routing hooks—each detail engineered to ensure stability, thermal efficiency and long-term reliability.

The extended-profile dust cap improves cone rigidity and damping, while the internal Radial Reinforcement Framework strengthens the mechanical structure during high-excursion operation. Airflow Venting Cooling technology ensures effective heat dissipation, preserving performance even under prolonged stress.

Optimized to perform at its best in compact sealed enclosures (12–14 L / 0.4–0.5 ft³), the AV 10 D2 II delivers deep, clean and fast bass, ideal for systems where space is limited but sonic expectations are high.

It is more than a compact subwoofer, it is a VOCE II-class component built to bring the emotion of music into every detail of your sound system.

Technical Specs

Nominal diameter 250 mm (10 in)
Impedance 2+2 Ohm
Power Handling - Peak 1100 W
Power Handling - Continuous 550 W
Sensitivity 83.5 dB
Frequency Response 25 - 400 Hz
Voice Coil Ø 38.6 mm (1.5 in)
Chassis Material ALUMINIUM
Magnet Material HIGH DENSITY FLUX FERRITE
Magnet size D x d x h 134*57*36 mm
Voice Coil Material CCAW
Former Material GLASS FIBER
Cone Material POLYPROPYLENE
Xmax 16.8 mm (0.66 in)
Xmech 20 mm (0.79 in)
Voice Coil Winding Height 37 mm (1.46 in)
Gap Height 7 mm (0.28 in)
Recommended Enclosure 13.2 l (0.466 ft)
Recommended Tuning 51 Hz
Ferrofluid No
Note The data below are specified with the VCs connected in series (2+2).

Electric-acoustic Specs

D 368 cm² (57.04 in²)
Re 3.25 Ohm
Fs 35 Hz
Le 4.1 mH
Vas 15.16 l (0.535 ft)
Mms 264 g (9.312 oz)
Cms 0.079 mm/N
BL 16.2 T•m
Qts 0.63
Qes 0.7
Qms 5.5
Reference Efficiency 83.5

General

Weight 5 kg

Dimensions

AV 10 D2 II
Dimension A 274.5 mm (10.81 in)
Dimension B 232 mm (9.13 in)
Dimension C 97 mm (3.82 in)
Dimension D 82.6 mm (3.25 in)
Dimension E 245 mm
Dimension F 40
Dimension C1 103 mm
Dimension C2 128.5 mm
Dimension D1 14.5 mm
