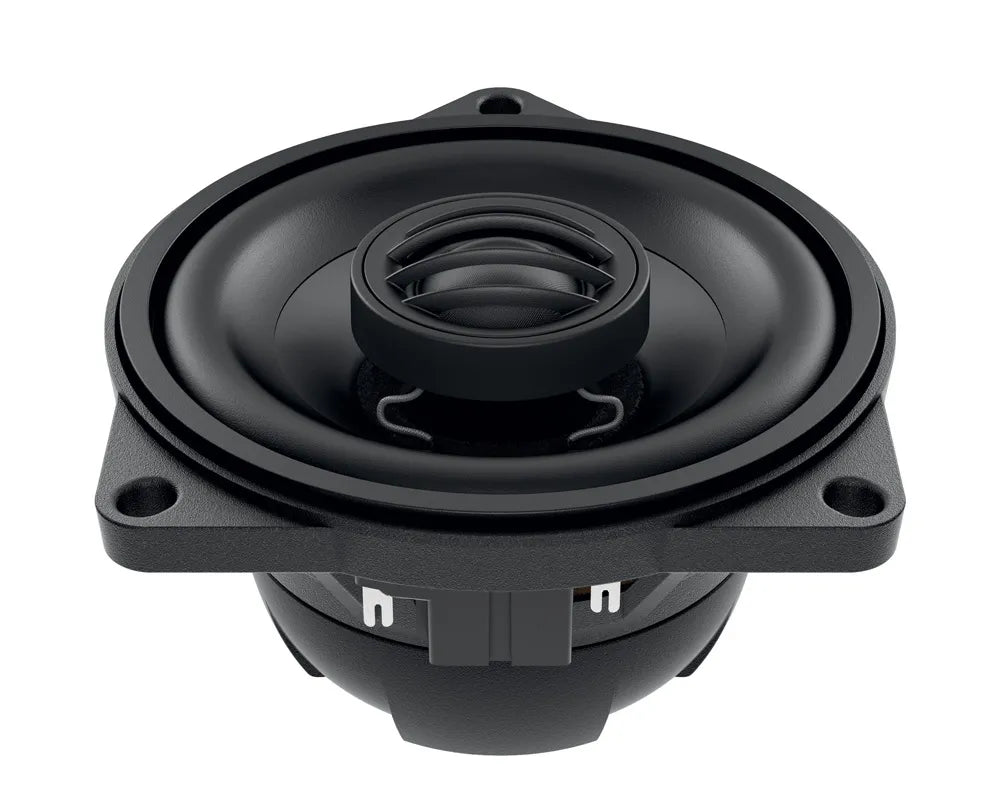

AUDISON Prima Line - Oem Coaxial Speaker (Apbmw X4M)

AUDISON Prima Line - Oem Coaxial Speaker (Apbmw X4M)

$469.99

AUDISON Prima Line - Oem Coaxial Speaker (Apbmw X4M)

$469.99
0 watching this item.

AUDISON Prima Line - Oem Coaxial Speaker (Apbmw X4M)

$469.99

SKU: APBMWX4M

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details
The APBMW X coaxials have been designed for BMW-MINI models that do not allow the installation of a two-way system on the front of the upgrade of the rear system. The 100 mm (4 in.) APBMW X4M, with basket and fixing screws dedicated to the specific car model, features a water-repellent pressed-paper cone for natural and color-free mid-range frequencies. The 20 mm coil and Tetolon dome tweeter, a material boasting lightness and damping properties offer optimized dispersion features for OEM placement, elevating the sound stage to a realistic level.

Technical Specs LF

Woofer Size 100 mm
Impedance 4 Ohm
Power Handling - Peak 80 W
Power Handling - Continuous 40 W
Sensitivity 88 dB
Frequency Response 100 ÷ 22k
Voice Coil Diameter 25 mm (0.79 in)
Magnet Size 50 x 29 x 3
Xmax 0.5 mm (0.98 in)

Technical Specs HF

Tweeter Size 24 mm (0.94 in)
Voice Coil Diameter 20 mm (0.79 in)

Electric-acoustic Specs

Re 3.4 Ohm
Fs 100 Hz
Mms 5.1 g (0.18 oz)
Cms 0.53
Bl 5
Qms 7.1
Qes 0,42
Qts 0.4
Vas 1.9 l (0.07 ft)
LE 0.32 mH

General

Weight 0.4 kg

Dimensions

Dimension A 102 mm (4.02 in)
Dimension B 91 mm (3.58 in)
Dimension C 63.5 mm (2.5 in)
Dimension D 44.5 mm (1.75 in)
