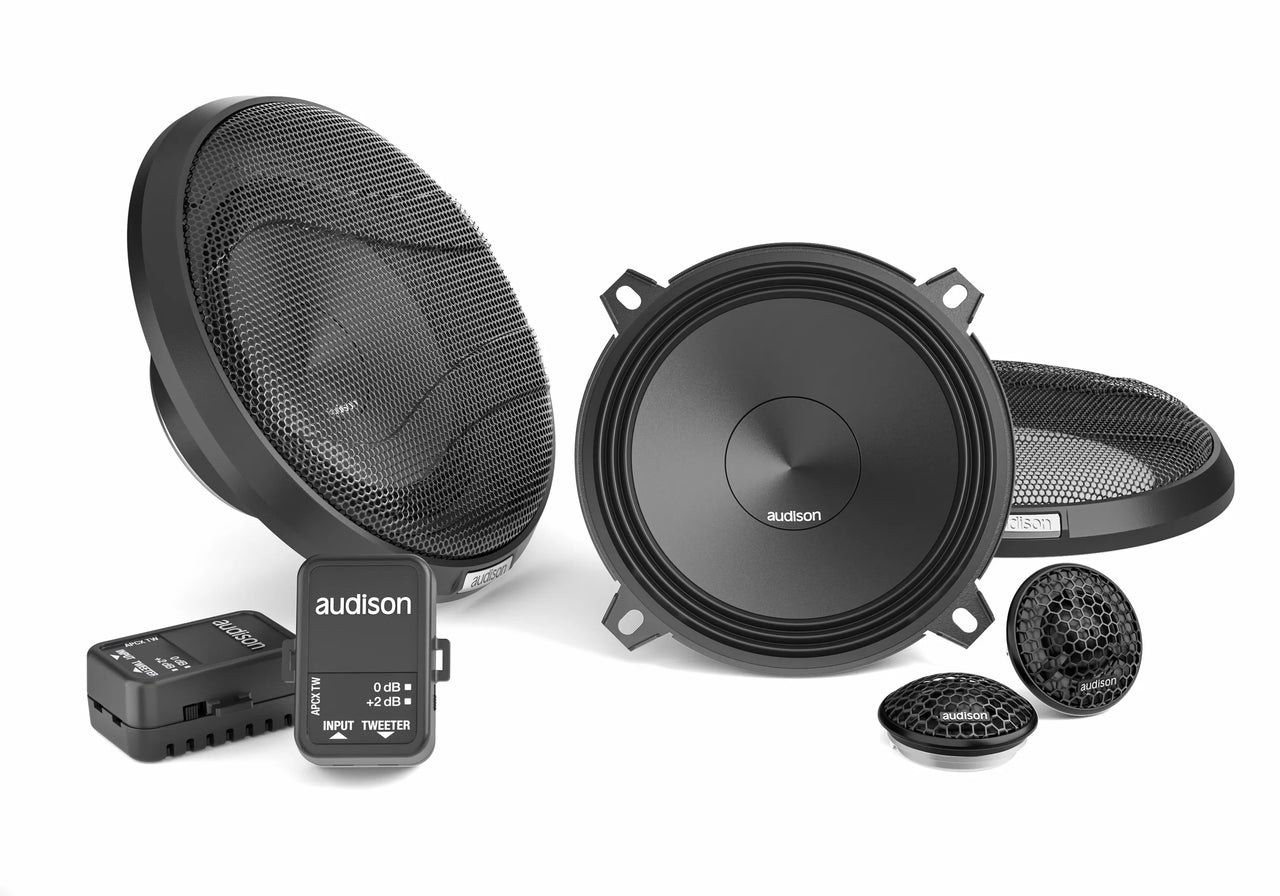

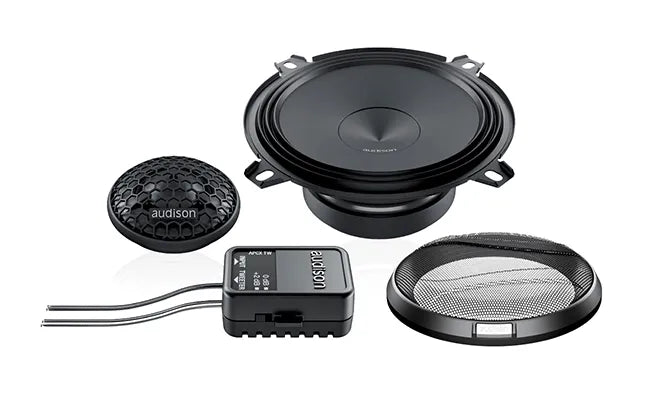

AUDISON Prima Line - 5" 2-Way 4 Ohm Component Speakers - Pair (Apk 130)

AUDISON Prima Line - 5" 2-Way 4 Ohm Component Speakers - Pair (Apk 130)

$419.99

AUDISON Prima Line - 5" 2-Way 4 Ohm Component Speakers - Pair (Apk 130)

$419.99
0 watching this item.

AUDISON Prima Line - 5" 2-Way 4 Ohm Component Speakers - Pair (Apk 130)

$419.99

SKU: APK130

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details

Two way system features AP 1 tweeter and AP 5 woofer. APCX TW crossover features a two-position level selector providing the ability to adapt its response to its two main applications: +2dB if installed behind the OEM grille, 0dB for an A-pillar installation without additional grilles between the tweeter and the listener.To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.



Technical Specs LF

Woofer Size 130 mm (5 in)
Impedance 4 Ohm
Power Handling - Peak 225 W
Power Handling - Continuous 75 W
Frequency Response 70 ÷ 20k
Voice Coil Diameter 32 mm (1.26 in)
Magnet Size 85 x 40 x 13
Crossover Type HP @ 3,5 kHz - 6 dB Oct
Crossover Level Adjustment +2; 0

Technical Specs HF

Tweeter Size 26 mm (1 in)
Voice Coil Diameter 20 mm (1.26 in)

Electric-acoustic Specs LF

Re 3.1 Ohm
Fs 90 Hz
Mms 9 g
Cms 0.34
BL 4.6
Qms 8
Qts 0.68
Vas 4 l
Le 0.25 mH
Spl 93 dB
Xmax 2 mm (0.08 in)

Kit Tech Data

Cone Diameter 107 mm

General

Weight Woofer 0.65 kg
Weight Tweeter 0.04 kg
