Front Runner HSP Silverback Hard Lid Slimline II Load Bed Rack Kit / 1255(W) x 1156(L) -KRHL001T

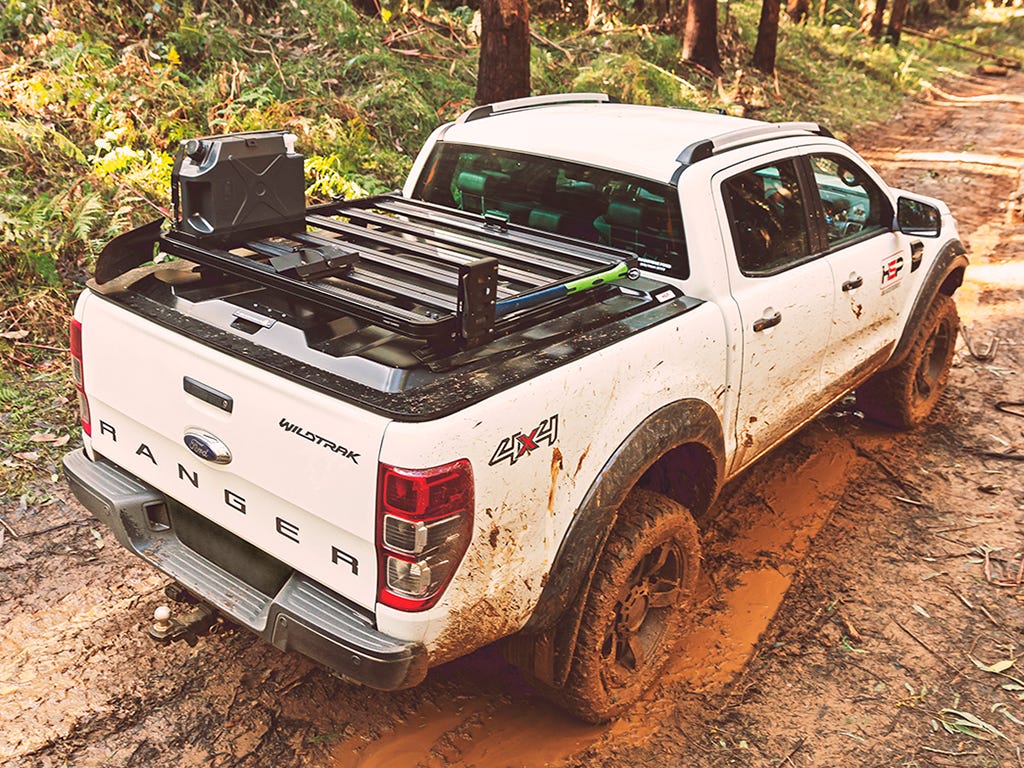

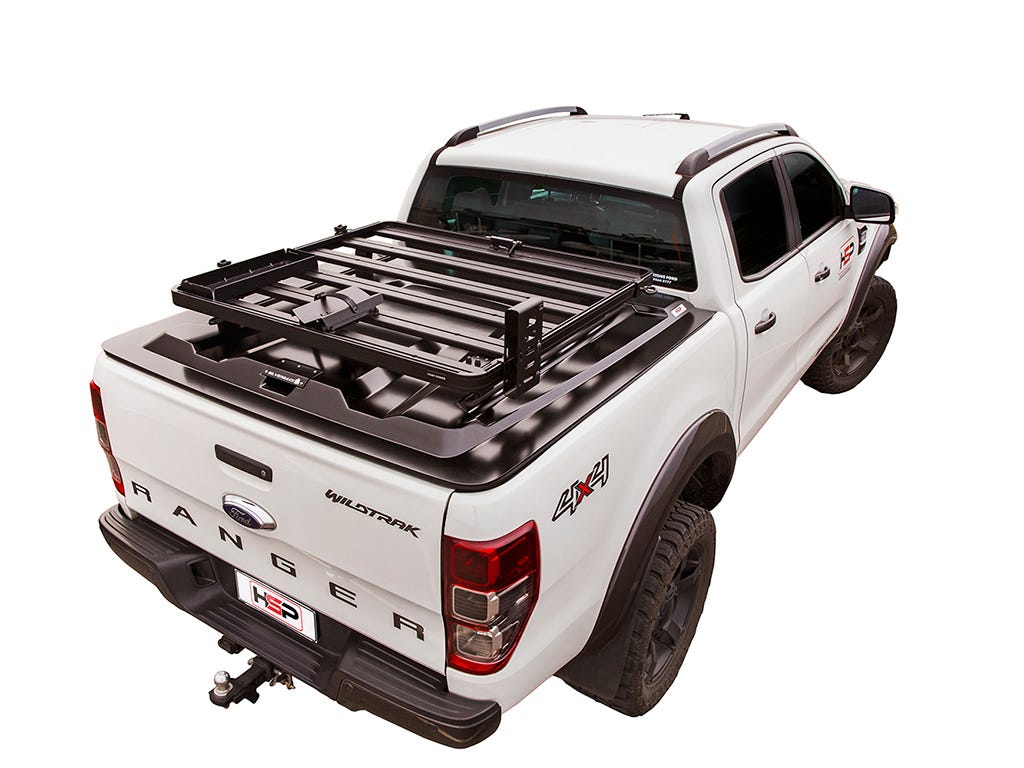

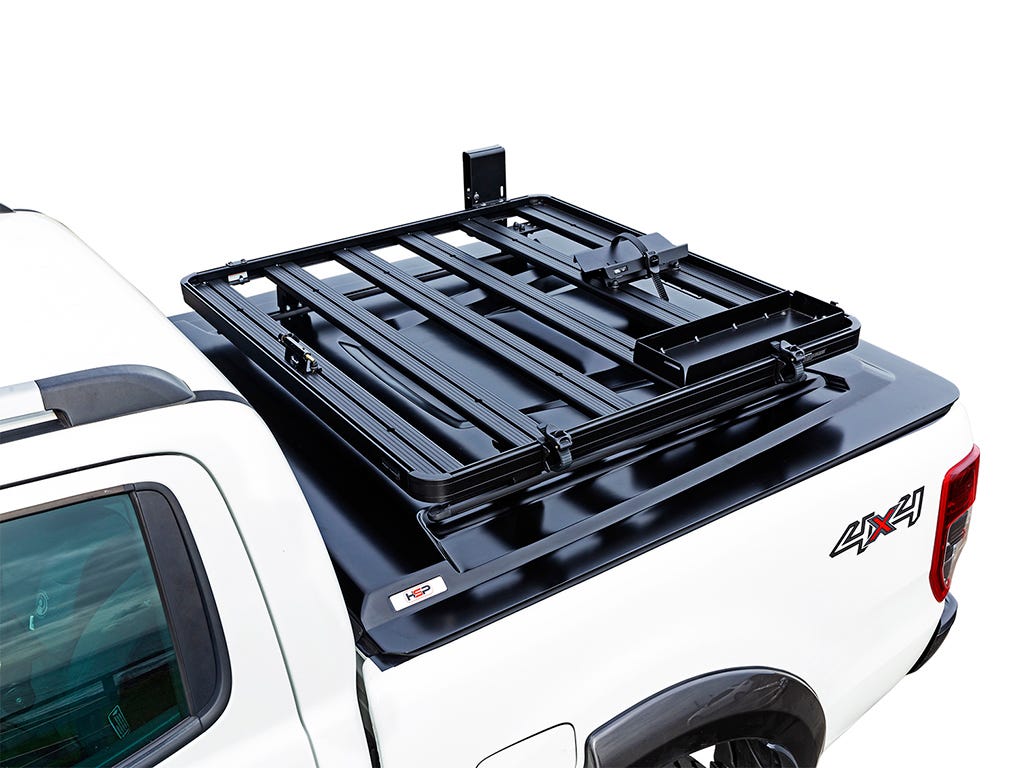

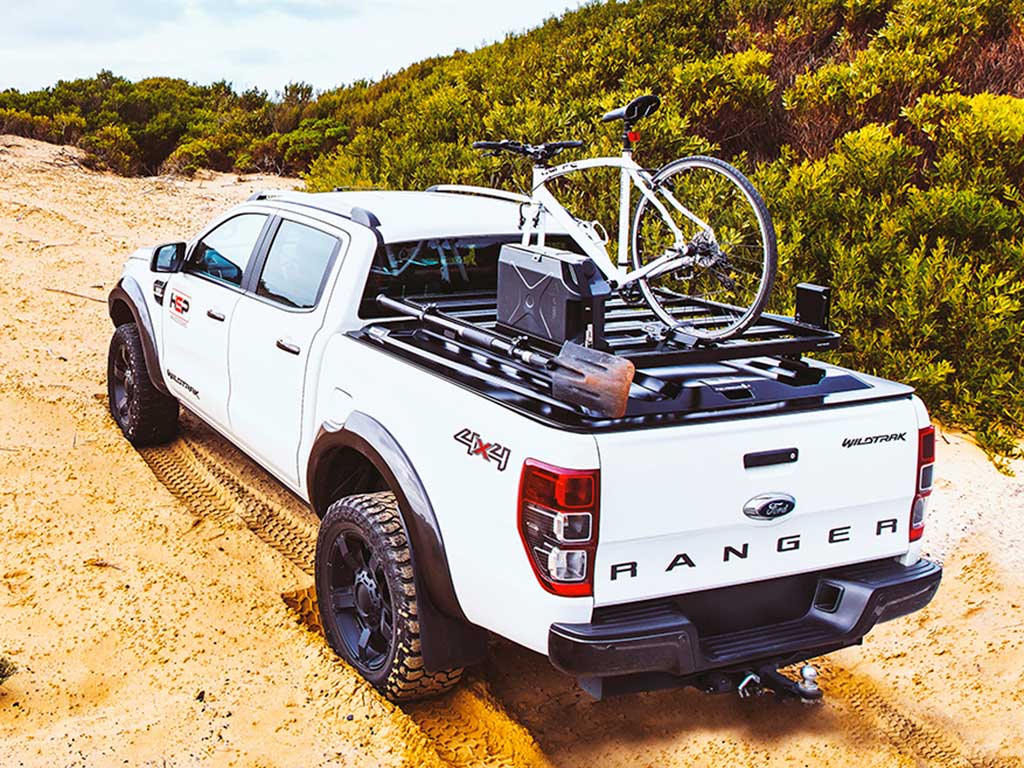

This kit creates a full-size rack that sits above your Pickup's load bed when fitted with a HSP Silverback Hard Lid. This Slimline II cargo carrying rack kit contains the Slimline II tray (1255mm x 1156mm), 2 Tracks, and 4 mounting feet.

This kit creates a full-size rack that sits above your Pickup's load bed when fitted with a HSP Silverback Hard Lid. This Slimline II cargo carrying rack kit contains the Slimline II tray (1255mm x 1156mm), 2 Tracks, and 4 mounting feet.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

• Note: A maximum driving speed of 130km/80mi per hour should be adhered to, when equipped with a Front Runner Roof Rack or Load Bar kit.

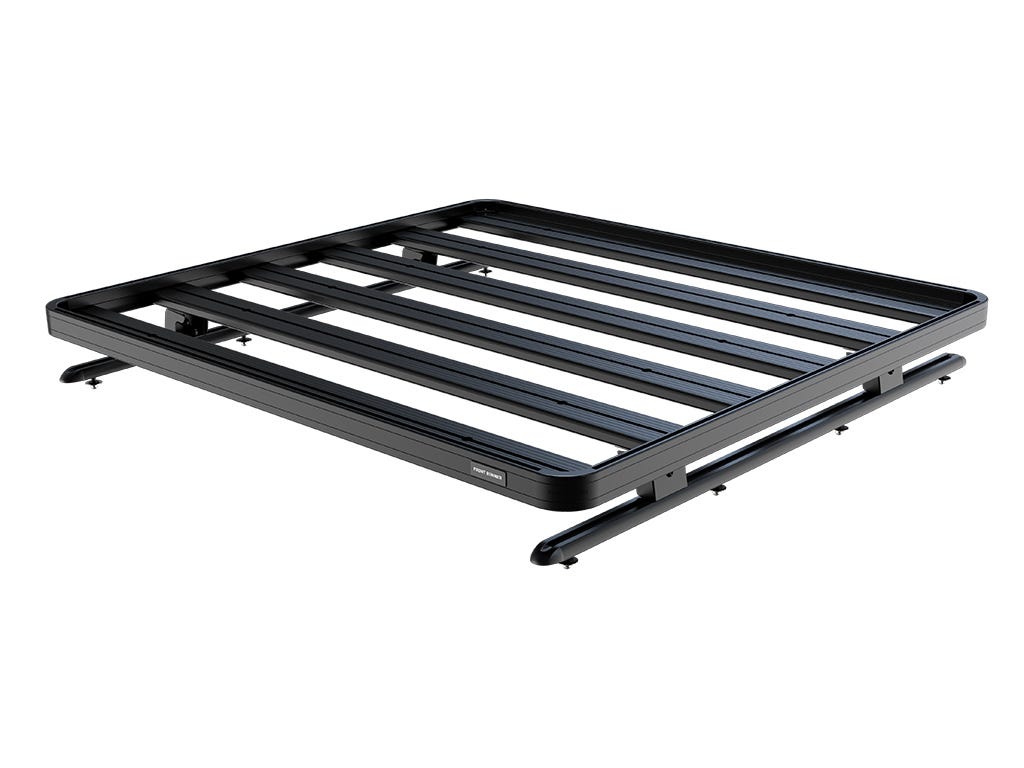

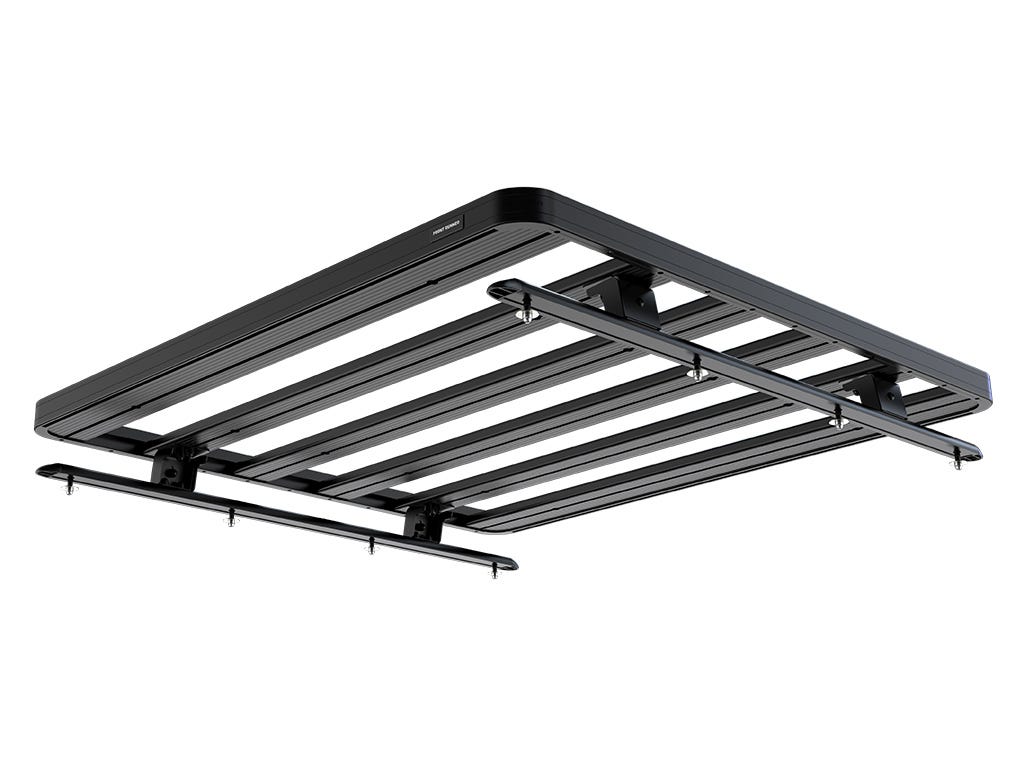

Consisting of:

2 x FASS025 - Foot Set / 70mm-80mm - by Front Runner
1 x RRSTD06 - Slimline II Tray - 1255mm(W) X 1156mm(L) - by Front Runner
1 x TRCA003 - Canopy Tracks / 1150mm(L) - by Front Runner

Material used:

Black epoxy powder-coated T6 aluminium
High strength steel

Approximate Installed Weight 21kg (47lbs)

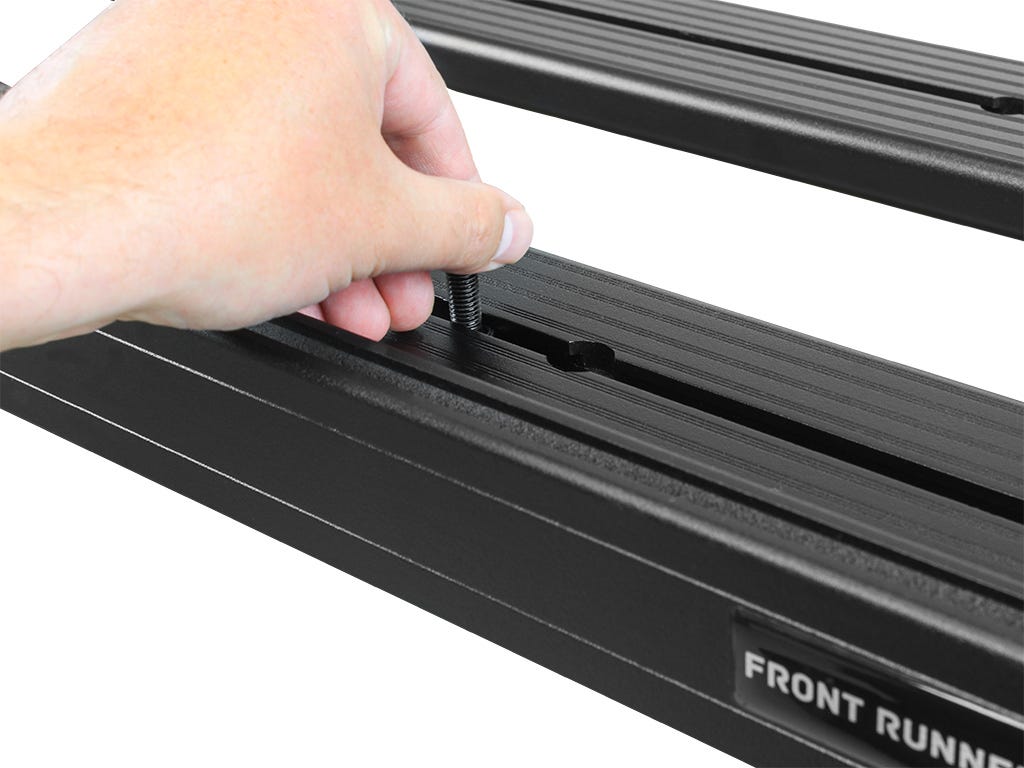

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width 450mm (18")
Length 1610mm (63")
Height 260mm (10")

Shipping Weight:

Weight 24.6kg (54.2lbs)
