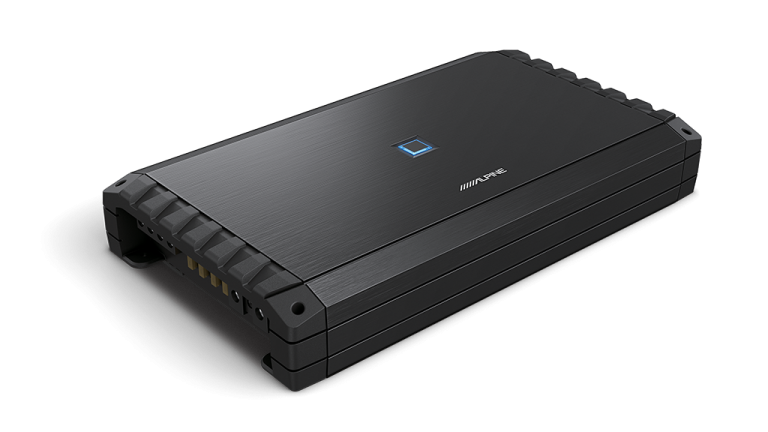

ALPINE Digital Mono High Power Amplifier - S2-A120M

ALPINE Digital Mono High Power Amplifier - S2-A120M

$584.96 $649.95 sale

ALPINE Digital Mono High Power Amplifier - S2-A120M

$584.96 $649.95 sale

ALPINE Digital Mono High Power Amplifier - S2-A120M

$584.96 $649.95 sale

SKU: S2-A120M

🚚 Order today and get it delivered in 5–15 business days!
LOW STOCK – Selling fast! Call 1300 856 888 to check availability or get expert help.

SAFE CHECKOUT

Afterpay Google Pay Mastercard Paypal American Express Visa JCB Shop
Product Details

The next generation of Alpine S-Series amplifiers are designed to take your car audio experience to the next level without breaking the bank. With a sleek new redesign and upgraded features from their predecessors, these amplifiers offer exceptional performance and power on an affordable budget.

The next generation S-Series S2-A120M mono subwoofer amplifier makes it a lot easier to get great bass in your vehicle, delivering up to 1200 Watts RMS power @ 2 Ohms. This massive power output allows to even run multiple subs from a single amplifier. A variable bass boost allows you to dial in some extra punch and impact for more low-frequency enjoyment. You can even add an optional wired remote to control the level of bass from your front seat.

A built-in low-pass filter puts you in command of the frequency spectrum that reaches your sub. The amp includes pre-amp- and speaker-level inputs, so you can install it in almost any vehicle, even one with a factory radio. When using the speaker-level inputs, the amp can sense the incoming signal and turn itself on, eliminating the need to run a separate turn-on wire to the receiver or fuse box.

Features

Install

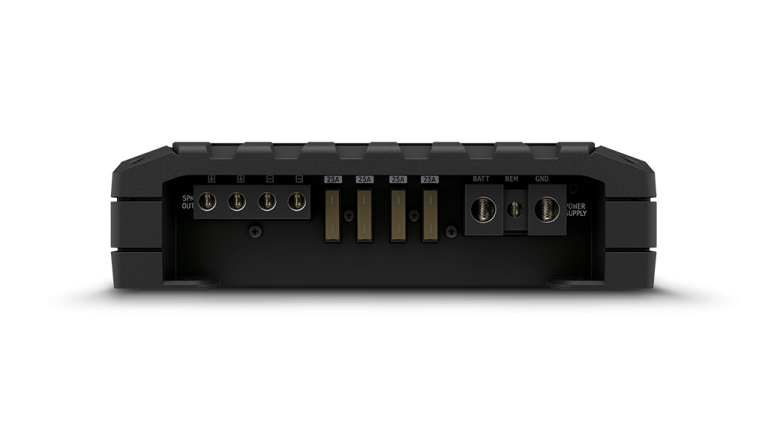

  • Terminal Layout: Two-sided
  • Included terminal covers
  • Screw terminals (for speaker and power cables)

General

  • Class-D Amplification (Digital)
  • Channel Design: Mono Channel

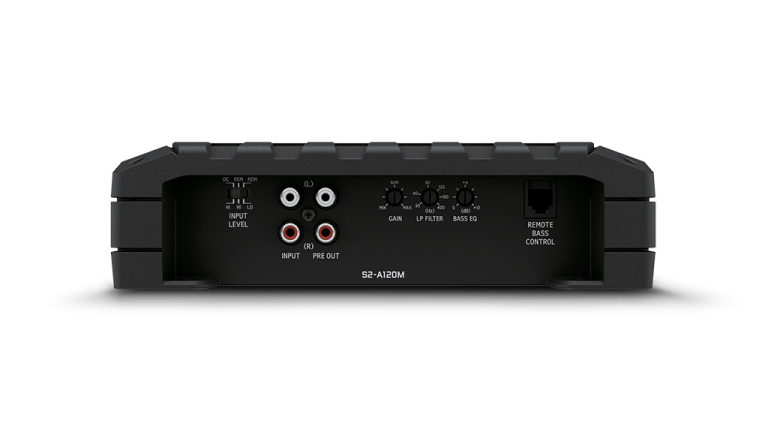

  • Side panel controls
  • Thermal Management Control
  • Top Mounted LED Power/Status Indicator
  • Speaker Level Input
  • 3 turn-on modes (DC HI, Remote HI, Remote LO)
  • Input Channel Selector Switch for Subwoofer
  • Crossover: Variable Low-pass Filter (LPF)
  • Adjustable Gain Control
  • Bass EQ
  • Remote Bass Control (RUX-KNOB2) Ready

Specifications

RMS Power Ratings

  • Per Channel into 1 Ohms, 14.4V (≤1%THD+N): 1 x 1200W
  • Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 1 x 1200W
  • Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 1 x 600W

Sound Tuning

  • Crossover: Variable LPF: 50-400Hz (-24dB/oct)
  • Bass EQ (+12dB)

General

  • Power Requirements: 14.4 V.DC (9 – 16 V allowable)
  • Input Sensitivity (RCA Input): Hi: 0.5V – 10V / Low: 0.2V – 4.0V
  • High Level Input with automatic power on
  • Frequency Response (+0, -3dB: 1W into 4 ohms): 10Hz – 400Hz
  • THD+N (@ 10W into 4 Ohms): <0.03%
  • Damping Factor: >750
  • Weight: 4.0kg

Dimensions

  • Heat Sink (WxHxD) mm: 352 x 57 x 210
