$917.00

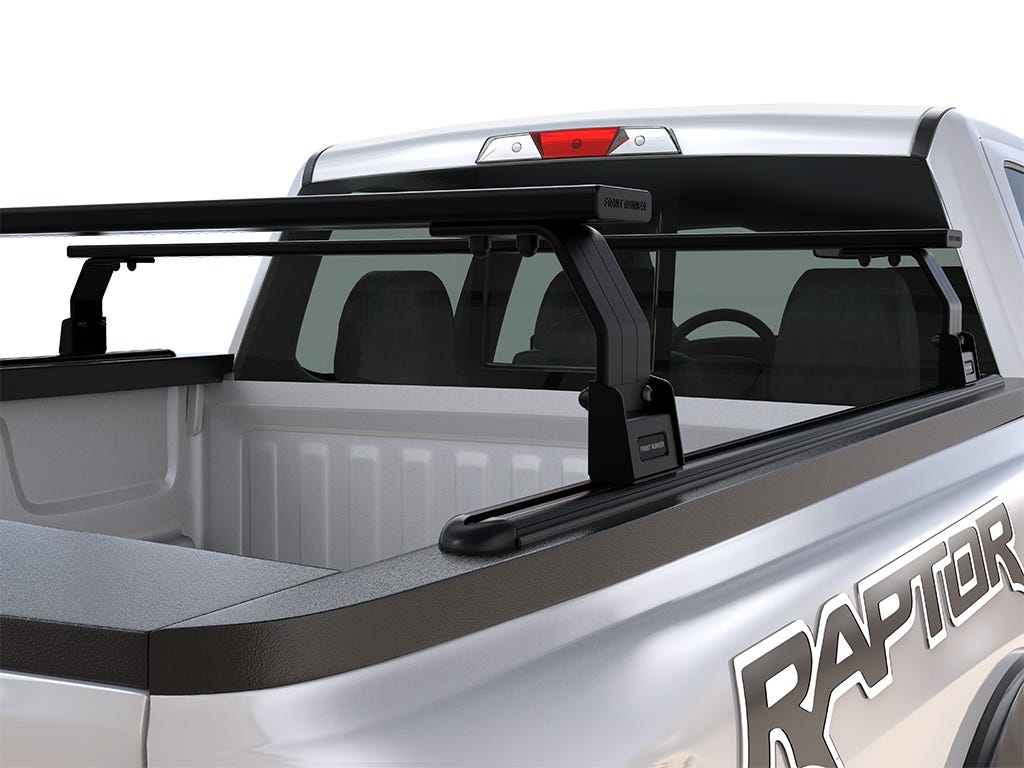

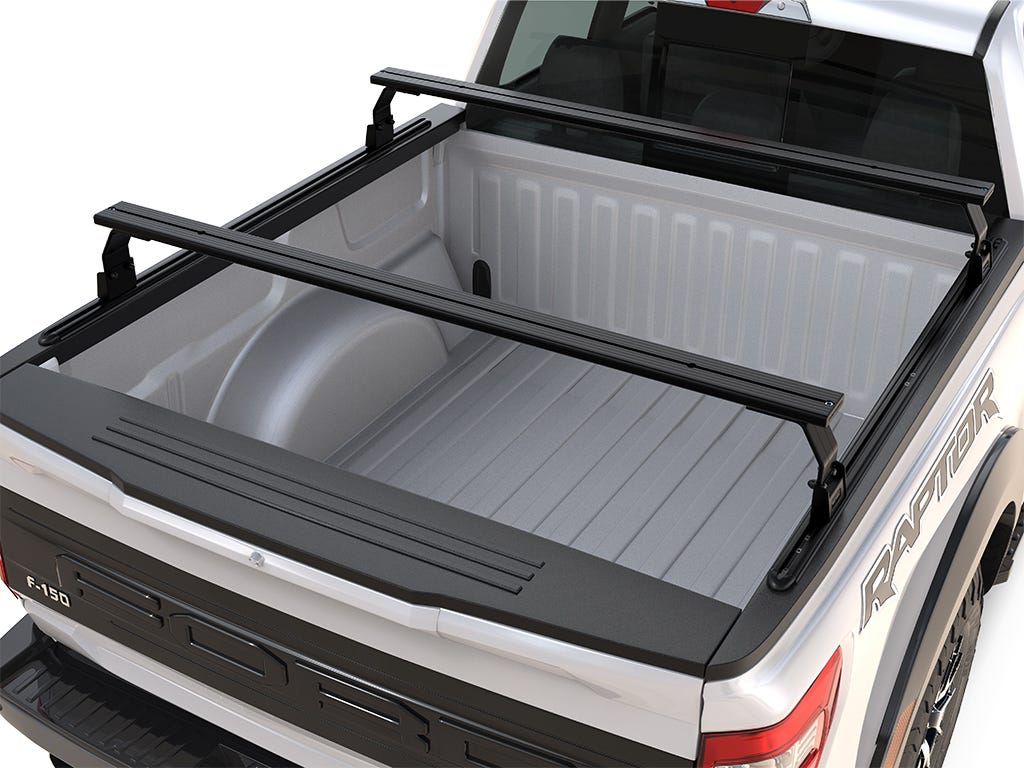

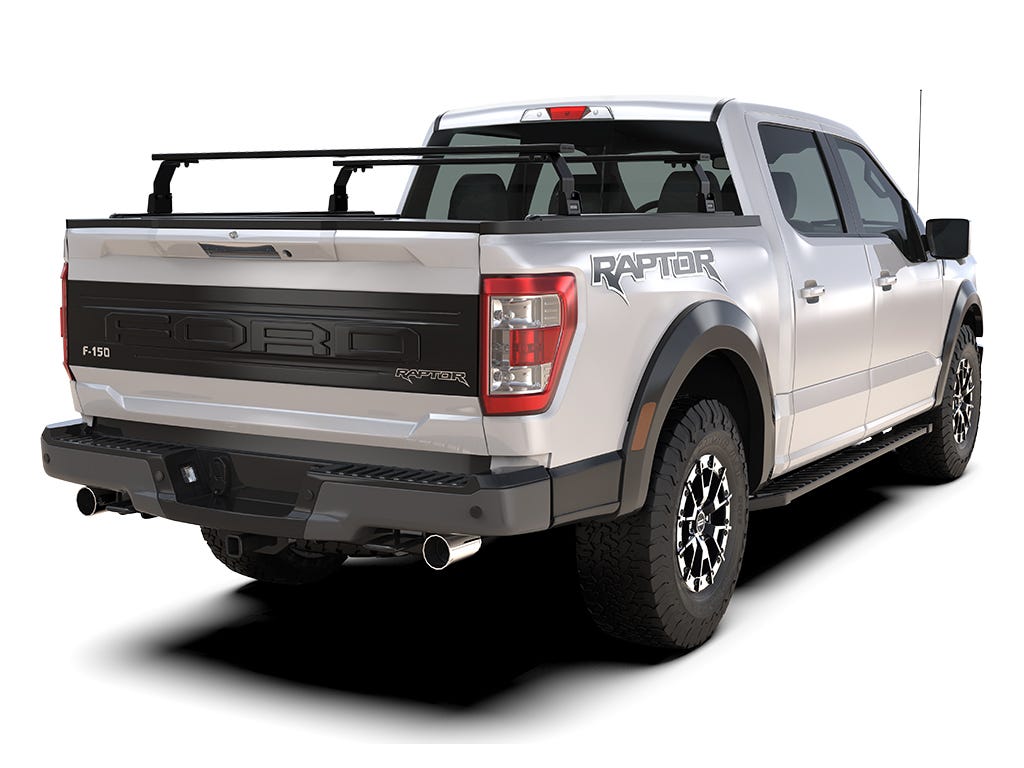

Guarantee all your gear arrives safely without compromising precious cargo space in your Ford F-150 Raptor 5.5' with these two low-profile, corrosion-free aluminum Load Bars. A set of Pickup Bed Load Bars used to transport gear over the bed of your Ford F-150 Raptor 5.5'. This low profile solution includes 4 Pickup Roll Top Leg Mounts, 2 1575mm Load Bars,...
Guarantee all your gear arrives safely without compromising precious cargo space in your Ford F-150 Raptor 5.5' with these two low-profile, corrosion-free aluminum Load Bars.

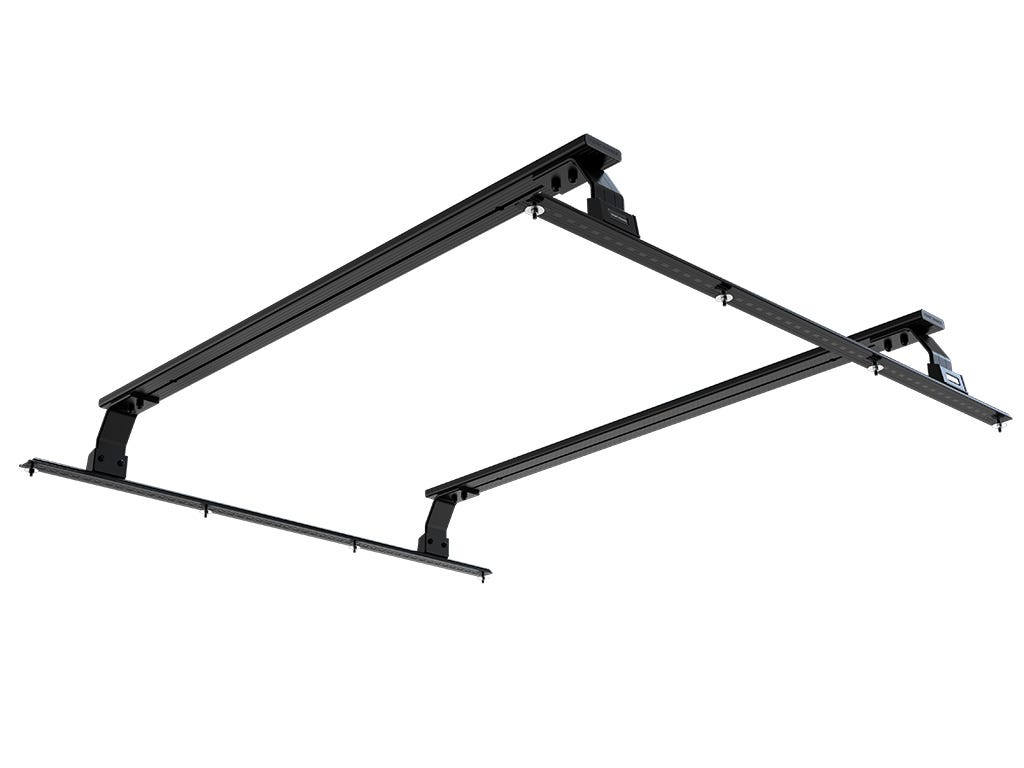

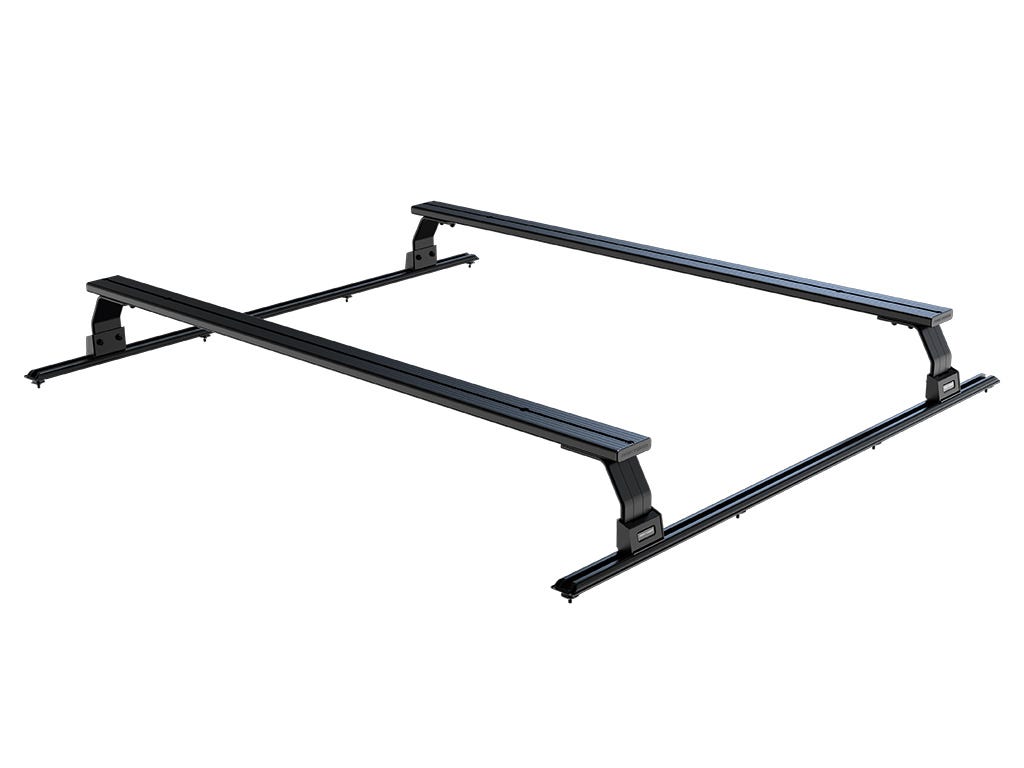

A set of Pickup Bed Load Bars used to transport gear over the bed of your Ford F-150 Raptor 5.5'. This low profile solution includes 4 Pickup Roll Top Leg Mounts, 2 1575mm Load Bars, 1 set of Load Bed Tracks and fitting instructions.
Note: If your Roll Top extrusion has a 6mm (0.24") to 7mm (0.28") slot opening, you may need Track Mount Stud Plate for installation.
Note: The load per Load Bars must not exceed 55lbs or 25kg, and ensure the load is distributed evenly. For larger loads, additional Load Bars may be needed, please contact Customer Service for any enquiries.
Consisting of:
2x LASS028 - Pick-Up Roll Top Leg Mount
1x LBSK018 - Roof Load Bar Pair 1575mm(W)
1x RRAC939 - Pickup Load Bed Bolt Kit / 30mm
1x TRBU003 - Pick-Up Load Bed Tracks / 1400mm(L)
Material Used:
Black epoxy powder - coated T6 aluminium
Approximate Installed Weight: 12.02kg (26.5lbs)

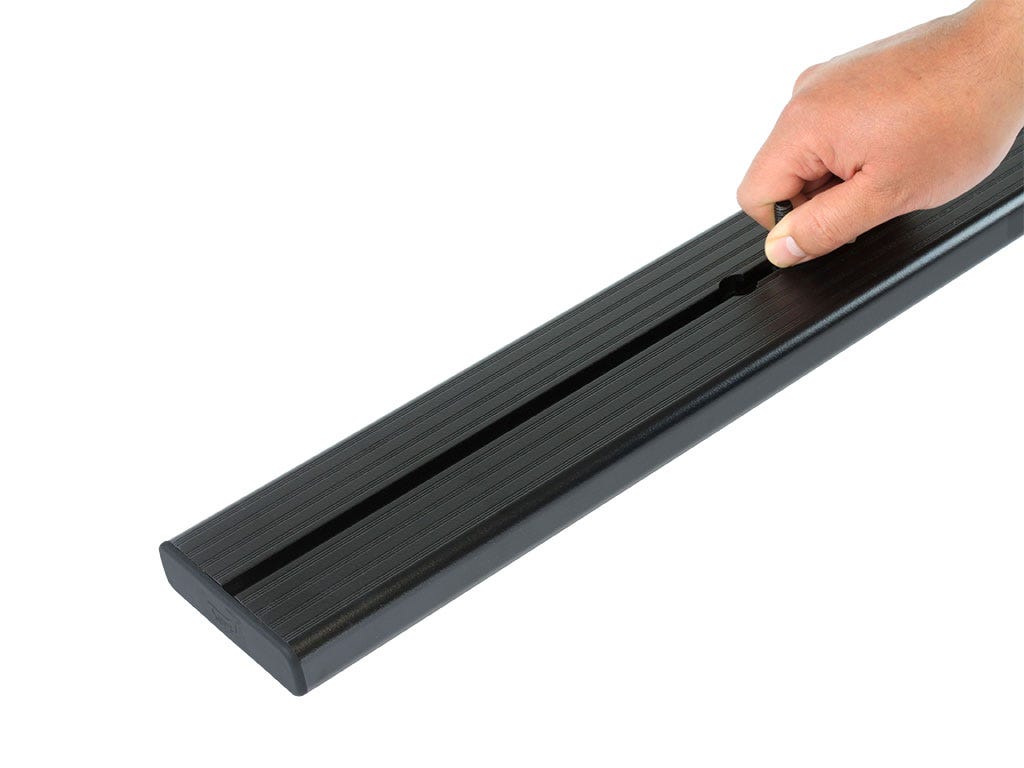

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle's rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width: 160mm (6")
Length: 1580mm (62")
Height: 275mm (11")
Shipping Weight:
Weight: 12.2kg (27lbs)
